Φ4.5*0.9*10.7*80° CBN轧辊旋刻刀头
| FOB Price | R25.0 / Piece |
| 港口: | 成都/上海/广州/深圳 |
| Minimum Order Quantity: | 50 Piece/Pieces |
| 付款方式: | 信用证,电子汇款,西联银行 |
| 供应能力: | 10000 片/月 |
- 数量:
Minimum Order Quantity: 50 Piece/Pieces
付款方式: 信用证,电子汇款,西联银行
供应能力: 10000 片/月

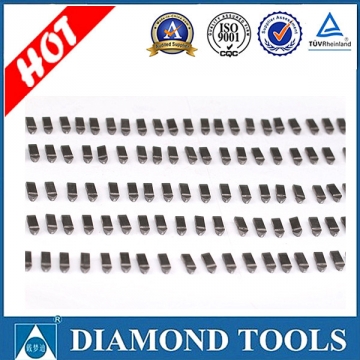

产品细节 Roller groove milling bits
Specification
| Order No. | Dimension(mm) | ||||
| ΦD | b | H | L | θ° | |
| Φ2*0.4*4.06*80° | 2.0 | 2 | 0.4 | 4.06 | 80 |
| Φ2.5*0.5*5.2*80° | 2.5 | 2.5 | 0.5 | 5.2 | 80 |
| Φ3*0.6*5.5*80° | 3.0 | 3 | 0.6 | 5.5 | 80 |
| Φ3.2*0.6*6.2*85° | 3.2 | 3.2 | 0.6 | 6.2 | 85 |
| Φ4*0.6*7.53*80° | 4.0 | 4 | 0.6 | 7.53 | 80 |
| Φ4*0.7*7.83*70° | 4.0 | 4 | 0.7 | 7.83 | 70 |
| Φ4*0.8*9.55*80° | 4.0 | 4 | 0.8 | 9.55 | 80 |
| Φ4.5*0.9*10.7*80° | 4.5 | 4.5 | 0.9 | 10.7 | 80 |
Contact us directly for more types and price!
Toolholder Recommended
Specification
| Order No. | Dimension(mm) | ||||
| D1 | D2 | D3 | L1 | L2 | |
| N4 | 4 | 2 | 16 | 4.06 | 35 |
| N6 | 4.5 | 2.5 | 16 | 5.22 | 35 |
| N8 | 5 | 3 | 16 | 5.5 | 37 |
| N9 | 6 | 3 | 16 | 6 | 37 |
| N10 | 6 | 3.2 | 16 | 6.8 | 41 |
| N12 | 7.3 | 4 | 16 | 8 | 56 |
| N13 | 8 | 4.5 | 16 | 9 | 56 |
| N14 | 8.8 | 5 | 16 | 9.5 | 56 |
| N16 | 10.4 | 5 | 18 | 11 | 65 |
| N18 | 12 | 6 | 18 | 12 | 65 |
| N20 | 13.5 | 6 | 18 | 14 | 65 |
| N22 | 15.2 | 6 | 20 | 16 | 66 |
Contact us directly for more types and price!
Application - roller grooving
PCD material imported from E6 or DI company
Equipment imported from UK, Germany, Japan
