22ER4.00ISO Threading Inserts
| FOB Price | R0.0 / Piece |
| Minimum Order Quantity: | 10 片 |
| 付款方式: | 信用证,电子汇款,西联银行 |
| 供应能力: | 60000 片/月 |
| 港口: | 成都/上海/广州/深圳 |
- 数量:
付款方式: 信用证,电子汇款,西联银行
供应能力: 60000 片/月
港口: 成都/上海/广州/深圳
产品细节

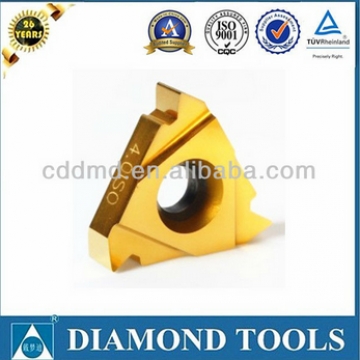

22ER4.00ISO Threading Inserts
1.Application: Our carbide threading inserts good for Low carbon steel, medium-carbon steel, High carbon steel, Alloy steel , Adjusting quality steel, Stainless steel, Cast steel, Cast iron,Aluminium alloy and copper alloy machining
2.Advantage Features:
A. Full profile design ensures the precision of threads.
B. Rake face feature: Smooth rake face design makes the chip removal more fluency.
C. Cutting edge process feature: . Uniform horning cutting edge design ensures inserts with small cutting force .
3. Performance: Just use it and you will say yes.
4. Stock: There are always more than 50,000pcs standard inserts in stock for urgent shipment.
5. Test samples: A few pcs free samples for your test.
6. Delivery: Within 5days shipment by international express DHL, UPS, FEDEX, TNT,DPEX and EMS.
Specificatons:
| D | Pitch | Designation | Dimension | ||||
| mm | Right Hand | Left Hand | L | X | Y | ||
| Internal | 1/4" | 0.50 | 11IR0.50 ISO | 11IL0.50 ISO | 11 | 0.6 | 0.6 |
| 0.75 | 11IR 0.75 ISO | 11IL0.75 ISO | 0.6 | 0.6 | |||
| 1.00 | 11IR1.00 ISO | 11IL1.00 ISO | 0.7 | 0.7 | |||
| 1.25 | 11IR1.25 ISO | 11IL1.25 ISO | 0.8 | 0.9 | |||
| 1.50 | 11IR1.50 ISO | 11IL1.50 ISO | 0.8 | 1.0 | |||
| 1.75 | 11IR1.75 ISO | 11IL1.75 ISO | 0.8 | 1.1 | |||
| 3/8" | 0.50 | 16IR0.50 ISO | 16IL0.50 ISO | 16 | 0.6 | 0.6 | |
| 0.75 | 16IR 0.75 ISO | 16IL0.75 ISO | 0.6 | 0.7 | |||
| 1.00 | 16IR1.00 ISO | 16IL1.00 ISO | 0.7 | 0.8 | |||
| 1.25 | 16IR1.25 ISO | 16IL1.25 ISO |
