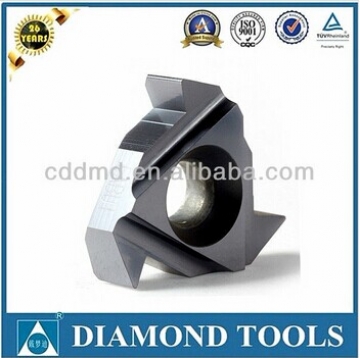

22IL 6 ABUT Threading Inserts Carbide thread insert
| FOB Price | R0.0 / Piece |
- 数量:
22IL 6 ABUT Threading Inserts Carbide thread insert
Unique Advantages
1. Full profile design ensures the high precision of threads
2. Smooth rake face makes the chip removal easier
3. Uniform horning cutting edge ensures the insert small cutting force
4. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the performance
Specification
| abut threading inserts | D | Pitch | Designation | Dimension | |||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| ABUT | 1/4" | 20 | 11IR 20ABUT | 11IL 20ABUT | 11 | 1.0 | 1.4 |
| 16 | 11IR 16ABUT | 11IL 16ABUT | 1.3 | 1.9 | |||
| 3/8" | 20 | 16IR 20ABUT | 16IL 20ABUT | 16 | 1.0 | 1.4 | |
| 16 | 16IR 16ABUT | 16IL 16ABUT | 1.3 | 1.9 | |||
| 12 | 16IR 12ABUT | 16IL 12ABUT | 1.4 | 2.0 | |||
| 10 | 16IR 10ABUT | 16IL 10ABUT | 1.5 | 2.3 | |||
| 1/2" | 8 | 22IR 8ABUT | 22IL 8ABUT | 22 | 2.0 | 3.2 | |
| 6 | 22IR 6 ABUT | 22IL 6ABUT | 2.2 | 3.5 | |||
♥ Remark: For other models and external threading inserts, please contact us directly.
Enlarged View
Strict Production Flow
Toolholder Recommended
Application &nb
