Cutting tools acme threading inserts
| FOB Price | R0.0 / Piece |
- 数量:
Cutting tools acme threading inserts
Unique Advantages
1. Full profile design ensures the high precision of ACME threads
2. Smooth rake face makes the chip removal easier
3. Uniform horning cutting edge ensures low cutting force
4. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the performance
Specification
| acme threading inserts | D | Pitch | Designation | Dimension | |||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| ACME 29° | 3/8" | 16 | 16IR16 ACME | 16IL16 ACME | 16 | 1.0 | 1.1 |
| 14 | 16IR14 ACME | 16IL16 ACME | 1.0 | 1.2 | |||
| 12 | 16IR12 ACME | 16IL12 ACME | 1.1 | 1.2 | |||
| 10 | 16IR10 ACME | 16IL10 ACME | 1.3 | 1.3 | |||
| 8 | 16IR 8ACME | 16IL 8ACME | 1.4 | 1.5 | |||
| 1/2" | 6 | 22IR6 ACME | 22IL6 ACME | 22 | 1.8 | 2.1 | |
| 5 | 22IR5 ACME | 22IL5 ACME | 2.0 | 2.3 | |||
| 5/8" | 4 | 27IR 4ACME | 27IL 4ACME | 27 | 2.4 | 2.7 | |
♥ Remark: If you can't search the types/models you are looking for, please contact us directly.

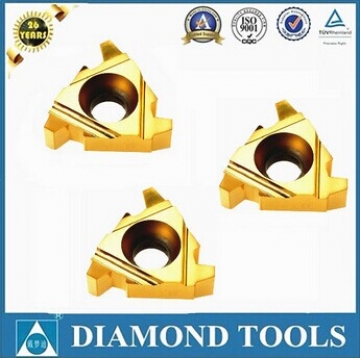

Enlarged View
Strict Production Flow
Application
| Coating | TIALN | TIN |
| Material processed | M30 (m/min) | P30 (m/min) |
| Low carbon steel or medium-carbon steel | 80-130 | 80-140 |
