11IL 28 BSPT api carbide threading inserts
| FOB Price | R0.0 / Piece |
| Minimum Order Quantity: | 10 片 |
| 付款方式: | 信用证,电子汇款,西联银行 |
| 供应能力: | 60000 片/月 |
| 港口: | 成都/上海/广州/深圳 |
- 数量:
付款方式: 信用证,电子汇款,西联银行
供应能力: 60000 片/月
港口: 成都/上海/广州/深圳
产品细节

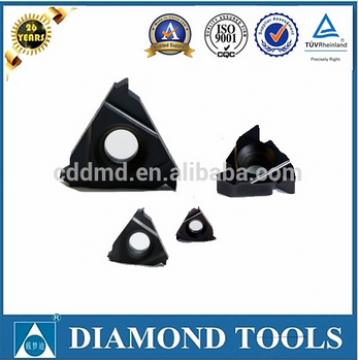

11IL 28 BSPT api carbide threading inserts
Unique Advantages
1. Full profile design ensures the high precision of threads
2. Smooth rake face makes the chip removal easier
3. Uniform horning cutting edge ensures low cutting force
4. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the performance
Specification
| External Threading | D | Pitch | Designation | Dimension | |||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| BSPT 55° | 1/4" | 28 | 11ER 28BSPT | 11EL 28BSPT | 11 | 0.6 | 0.6 |
| 19 | 11ER 19BSPT | 11EL 19BSPT | 0.8 | 0.9 | |||
| 14 | 11ER 14BSPT | 11EL 14BSPT | 0.9 | 1.0 | |||
| 3/8" | 28 | 16ER 28BSPT | 16EL 28BSPT | 16 | 0.6 | 0.6 | |
| 19 | 16ER 19BSPT | 16EL 19BSPT | 0.8 | 0.9 | |||
| 14 | 16ER 14BSPT | 16EL 14BSPT | 1.0 | 1.2 | |||
| 11 | 16ER 11BSPT | 16EL 11BSPT | 1.1 | 1.5 | |||
♥ Remark:
此产品还未被评论
