22ER 5.0 TR cutting tool threading inserts
| FOB Price | R0.0 / Piece |
- 数量:
所有货物价格都请参照最新价格
Specifications
产品细节

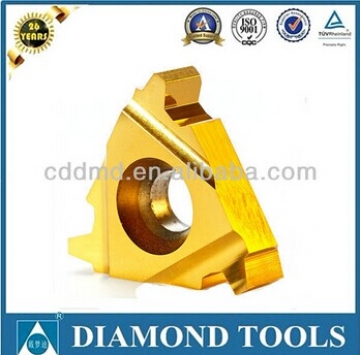

22ER 5.0 TR cutting tool threading inserts
1. Full profile design ensures the high precision of threads
2. Smooth rake face makes the chip removal easier
3. Uniform horning cutting edge ensures low cutting force
4. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the performance
Specification
| TR threading inserts | D | Pitch | Designation | Dimension | |||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| TR 30° | 3/8" | 1.5 | 16ER 1.5TR | 16EL 1.5TR | 16 | 1.0 | 1.1 |
| 2.0 | 16ER 2.0TR | 16EL 2.0TR | 1.1 | 1.3 | |||
| 3.0 | 16ER 3.0TR | 16EL 3.0TR | 1.3 | 1.5 | |||
| 1/2" | 4.0 | 22ER 4.0TR | 22EL 4.0TR | 22 | 1.7 | 1.9 | |
| 5.0 | 22ER 5.0TR | 22EL 5.0TR | 2.1 | 2.5 | |||
| 5/8" | 6.0 | 27ER 6.0TR | 27EL 6.0TR | 27 | 2.2 | 2.6 | |
| 7.0 | 27ER 7.0TR | 27EL 7.0TR | 2.3 | 2.7 | |||
♥ Remark: If you can't search the types/models you are looking for, please contact us directly.
Enlarged View
Application
| Coating | TIALN | TIN |
| Material processed | M30 (m/min) | P30 (m/min) |
| Low carbon steel or medium-carbon steel | 80-130 | 80-140 |
| High carbon steel | 60-110 | 60-120 |
| Alloy steel or Adjusting quality steel | 60-110 | 60-120 |
| Stainless steel | 60-100 | / |
| Cast steel | 60-110 | 60-120 |
| Cast iron | 60-200 | / |
| Aluminum alloy or Copper alloy | 90-280 | / |
