22IR 5.0 TR Internal threaded insert carbide
| FOB Price | R0.0 / Piece |
- 数量:
所有货物价格都请参照最新价格
Specifications
产品细节
Carbide Indexable Inserts

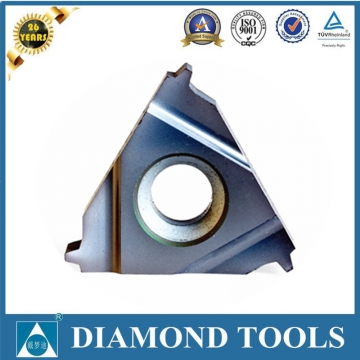

TR (Trapeze DIN 103) carbide indexable threading inserts :
Application:
carbide indexable threading Insert with TiN coating is suitable for steel, copper and other alloy aluminium processing application, and the other one with TiALN coating is suitable for stainless steel processing application.
Engineering Drawing and Selection Table:
| D | Pitch | Designation | Dimension | ||||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| External | 3/8" | 1.5 | 16ER1.5 TR | 16EL1.5 TR | 16 | 1.0 | 1.1 |
| 2.0 | 16ER2.0 TR | 16EL2.0 TR | 1.1 | 1.3 | |||
| 3.0 | 16ER3.0 TR | 16EL3.0 TR | 1.3 | 1.5 | |||
| 1/2" | 4.0 | 22ER4.0 TR | 22EL4.0TR | 22 | 1.7 | 1.9 | |
| 5.0 | 22ER5.0 TR | 22EL5.0 TR | 2.1 | 2.5 | |||
| 5/8" | 6.0 | 27ER6.0 TR | 27EL6.0 TR | 27 | 2.2 | 2.6 | |
| 7.0 | 27ER7.0 TR | 27EL7.0 TR | 2.3 | 2.7 | |||
| Internal | 3/8" | 1.5 | 16IR1.5 TR | 16IL1.5 TR | 16 | 1.0 | 1.1 |
| 2.0 | 16IR2.0 TR | 16IL2.0 TR | 1.1 | 1.3 | |||
| 3.0 | 16IR3.0 TR | 16IL3.0 TR | 1.3 | 1.5 | |||
| 1/2" | 4.0 | 22IR4.0 TR | 22IL4.0TR | 22 | 1.7 | 1.9 | |
| 5.0 | 22IR5.0 TR | 22IL5.0 TR | 2.1 | 2.5 | |||
| 5/8" |
