CNC Carbide Inserts - UN standard 11IL 16UN
| FOB Price | R0.0 / Piece |
| Minimum Order Quantity: | 10 片 |
| 付款方式: | 信用证,电子汇款,西联银行 |
| 供应能力: | 60000 片/月 |
| 港口: | 成都/上海/广州/深圳 |
- 数量:
付款方式: 信用证,电子汇款,西联银行
供应能力: 60000 片/月
港口: 成都/上海/广州/深圳
产品细节

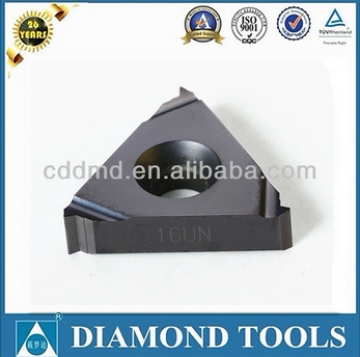

CNC Carbide Inserts - UN standard 11IL 16UN
Unique Advantages
1. Full profile design ensures the high precision of threads
2. Smooth rake face makes the chip removal easier
3. Uniform horning cutting edge ensures the insert small cutting force
4. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the performance
Specification
| cnc carbide inserts | D | Pitch | Part No. | Dimension | |||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| American UN | 1/4" | 32 | 11IR 32 UN | 11IL 32 UN | 11 | 0.6 | 0.6 |
| 28 | 11IR 28 UN | 11IL 28 UN | 0.6 | 0.7 | |||
| 24 | 11IR 24 UN | 11IL 24 UN | 0.7 | 0.8 | |||
| 20 | 11IR 20 UN | 11IL 20 UN | 0.8 | 0.9 | |||
| 18 | 11IR 18 UN | 11IL 18 UN | 0.8 | 1.0 | |||
| 16 | 11IR 16UN | 11IL 16UN | 0.9 | 1.1 | |||
♥ Remark: If you can't search the types/models you are looking for, please contact us directly.
Enlarged View
Strict Production Flow
Toolholder Recommended
Application
| Coating | TIALN | TIN |
| Material processed | M30 (m/min) | P30 (m/min) |
| Low carbon steel or medium-carbon steel | 80-130 | 80-140 |
| High carbon steel | 60-110 | 60-120 |
