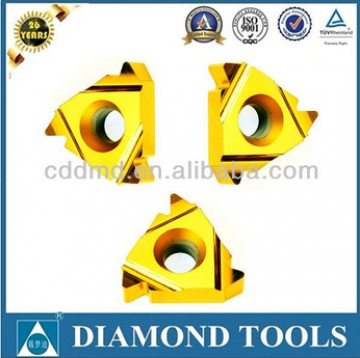

16ER12 W 16IR12 W tungsten carbide threading inserts
Unique Advantages
1. Smooth rake face makes the chip removal easier
2. Uniform horning cutting edge ensures the insert small cutting force
3. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the performance
Specification
tungsten carbide threading inserts | D | Pitch | Designation | Dimension | |||
TPI | Right Hand | Left Hand | L | X | Y | ||
Whitworth BSW 55° | 3/8" | 28 | 16ER28 W | 16EL28 W | 16 | 0.6 | 0.7 |
26 | 16ER26 W | 16EL26 W | 0.7 | 0.8 | |||
20 | 16ER20 W | 16EL20 W | 0.8 | 0.9 | |||
19 | 16ER19 W | 16EL19 W | 0.8 | 1.0 | |||
18 | 16ER18 W | 16EL18 W | 0.8 | 0.9 | |||
16 | 16ER16 W | 16EL16 W | 0.9 | 1.1 | |||
14 | 16ER14 W | 16EL14 W | 1.0 | 1.2 | |||
12 | 16ER12 W | 16EL12 W | 1.1 | 1.4 | |||
11 | 16ER11 W | 16EL11 W | 1.1 | 1.5 | |||
10 | 16ER 10W | 16EL10 W | 1.1 | 1.5 | |||
9 | 16ER9 W | 16EL9 W | 1.2 | 1.5 | |||
8 | 16ER8 W | 16EL8 W | 1.2 | 1.7 |
♥ Remark: If you can't search the types/models you are looking for, please contact us directly.
Enlarged View
Strict Production Flow
Toolholder Recommended
Application
Coating | TIALN | TIN |
Material processed | M30 (m/min) | P30 (m/min) |
Low carbon steel or medium-carbon steel |
