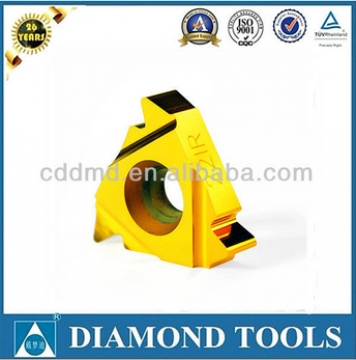

22IR5 W CNC Insert Carbide for turning
| FOB Price | R0.0 / Piece |
| Minimum Order Quantity: | 10 片 |
| 付款方式: | 信用证,电子汇款,西联银行 |
| 供应能力: | 60000 片/月 |
| 港口: | 成都/上海/广州/深圳 |
- 数量:
付款方式: 信用证,电子汇款,西联银行
供应能力: 60000 片/月
港口: 成都/上海/广州/深圳
产品细节
22IR5 W CNC Insert Carbide for turning
1. Smooth rake face makes the chip removal easier
2. Uniform horning cutting edge ensures the insert small cutting force
3. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the performance
Specification
| insert carbide | D | Pitch | Designation | Dimension | |||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| Whitworth BSW 55° | 1/2" | 7 | 22IR7 W | 22IL7 W | 22 | 1.6 | 2.3 |
| 6 | 22IR6 W | 22IL6 W | 1.6 | 2.3 | |||
| 5 | 22IR5 W | 22IL5 W | 1.7 | 2.4 | |||
| 5/8" | 4.5 | 27IR4.5 W | 27IL4.5 W | 27 | 1.8 | 2.7 | |
| 4 | 27IR4 W | 27IL4 W | 2.0 | 2.9 | |||
♥ Remark: If you can't search the types/models you are looking for, please contact us directly.
Enlarged View
Strict Production Flow
Toolholder Recommended
Application
| Coating | TIALN | TIN |
| Material processed | M30 (m/min) | P30 (m/min) |
| Low carbon steel or medium-carbon steel | 80-130 | 80-140 |
| High carbon steel | 60-110 | 60-120 |
| Alloy steel or Adjusting quality steel | 60-110 | 60-120 |
| Stainless steel | 60-100 | / |
| Cast steel | 60-110 | 60-120 |
