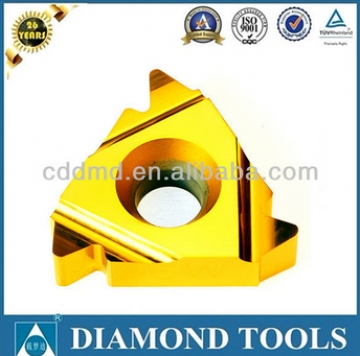

16ER14 W 16IR14 Wcarbide threading inserts
| FOB Price | R0.0 / Piece |
| 港口: | 成都/上海/广州/深圳 |
| 供应能力: | 60000 片/月 |
| 付款方式: | 信用证,电子汇款,西联银行 |
| Minimum Order Quantity: | 10 片 |
- 数量:
供应能力: 60000 片/月
付款方式: 信用证,电子汇款,西联银行
Minimum Order Quantity: 10 片
产品细节
16ER14 W 16IR14 Wcarbide threading inserts
Unique Advantages
1. Smooth rake face design makes the chip removal easier
2. Uniform horning cutting edge ensures the insert small cutting force
3. BALINIT® coatings (Oerlikon Balzers) allows long tool life and improves the performance
Specification
| carbide threading inserts | D | Pitch | Designation | Dimension | |||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| Whitworth BSW 55° | 3/8" | 28 | 16ER28 W | 16EL28 W | 16 | 0.6 | 0.7 |
| 26 | 16ER26 W | 16EL26 W | 0.7 | 0.8 | |||
| 20 | 16ER20 W | 16EL20 W | 0.8 | 0.9 | |||
| 19 | 16ER19 W | 16EL19 W | 0.8 | 1.0 | |||
| 18 | 16ER18 W | 16EL18 W | 0.8 | 0.9 | |||
| 16 | 16ER16 W | 16EL16 W | 0.9 | 1.1 | |||
| 14 | 16ER14 W | 16EL14 W | 1.0 | 1.2 | |||
| 12 | 16ER12 W | 16EL12 W | 1.1 | 1.4 | |||
| 11 | 16ER11 W | 16EL11 W | 1.1 | 1.5 | |||
| 10 | 16ER 10W | 16EL 10W | 1.1 | 1.5 | |||
| 9 | 16ER9 W | 16EL9 W | 1.2 | 1.5 | |||
| 8 | 16ER8 W | 16EL8 W | 1.2 | 1.7 | |||
♥ Remark: If you can't search the types/models you are looking for, please contact us directly.
Enlarged View
Strict Production Flow
Toolholder Recommended
Application
| Coating | TIALN | TIN |
| Material processed | M30 (m/min) | P30 (m/min) |
| Low carbon steel or medium-carbon steel | 80-130 | 80-140 |
| High carbon steel | 60-110 |
